Product Description

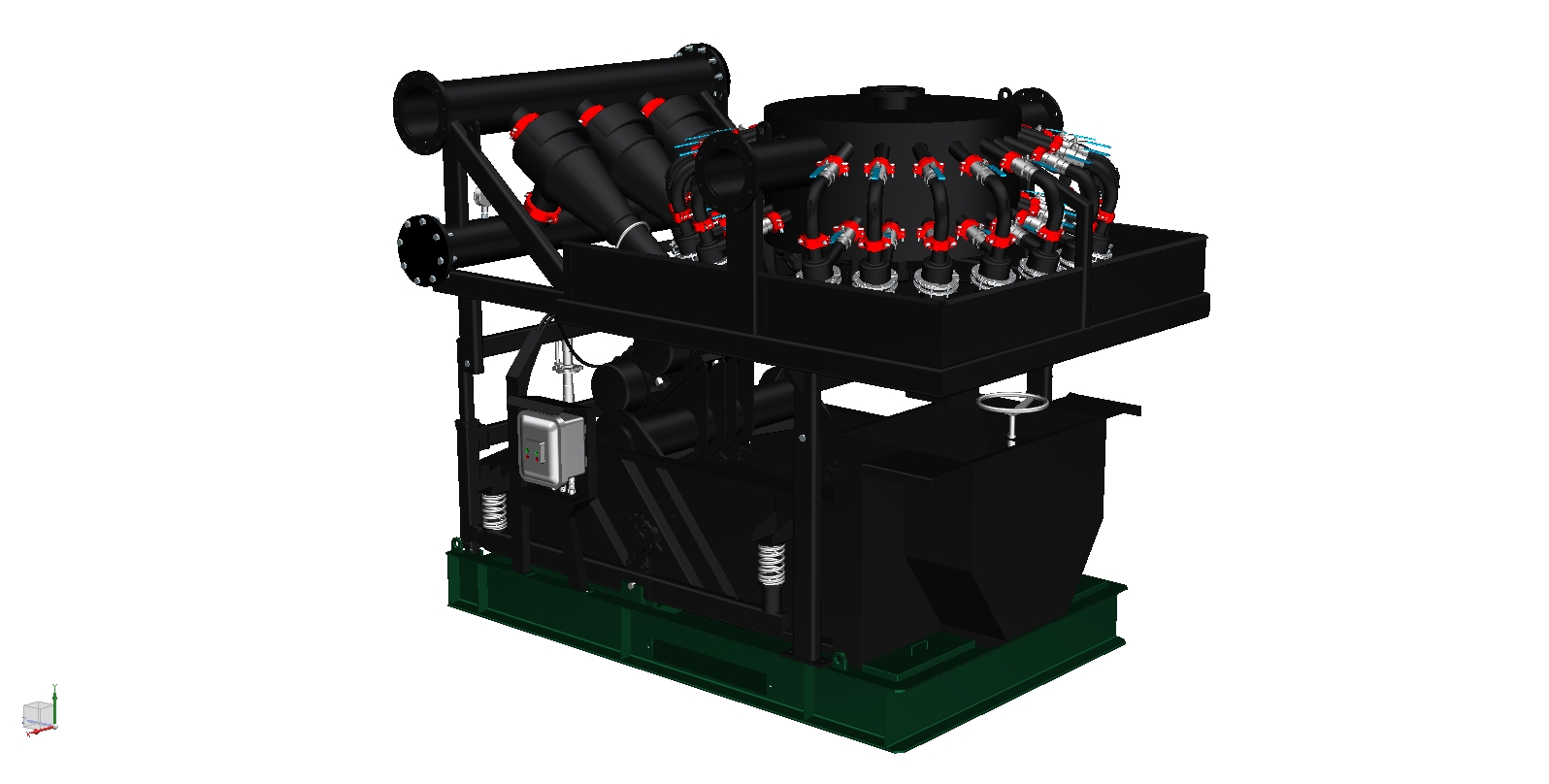

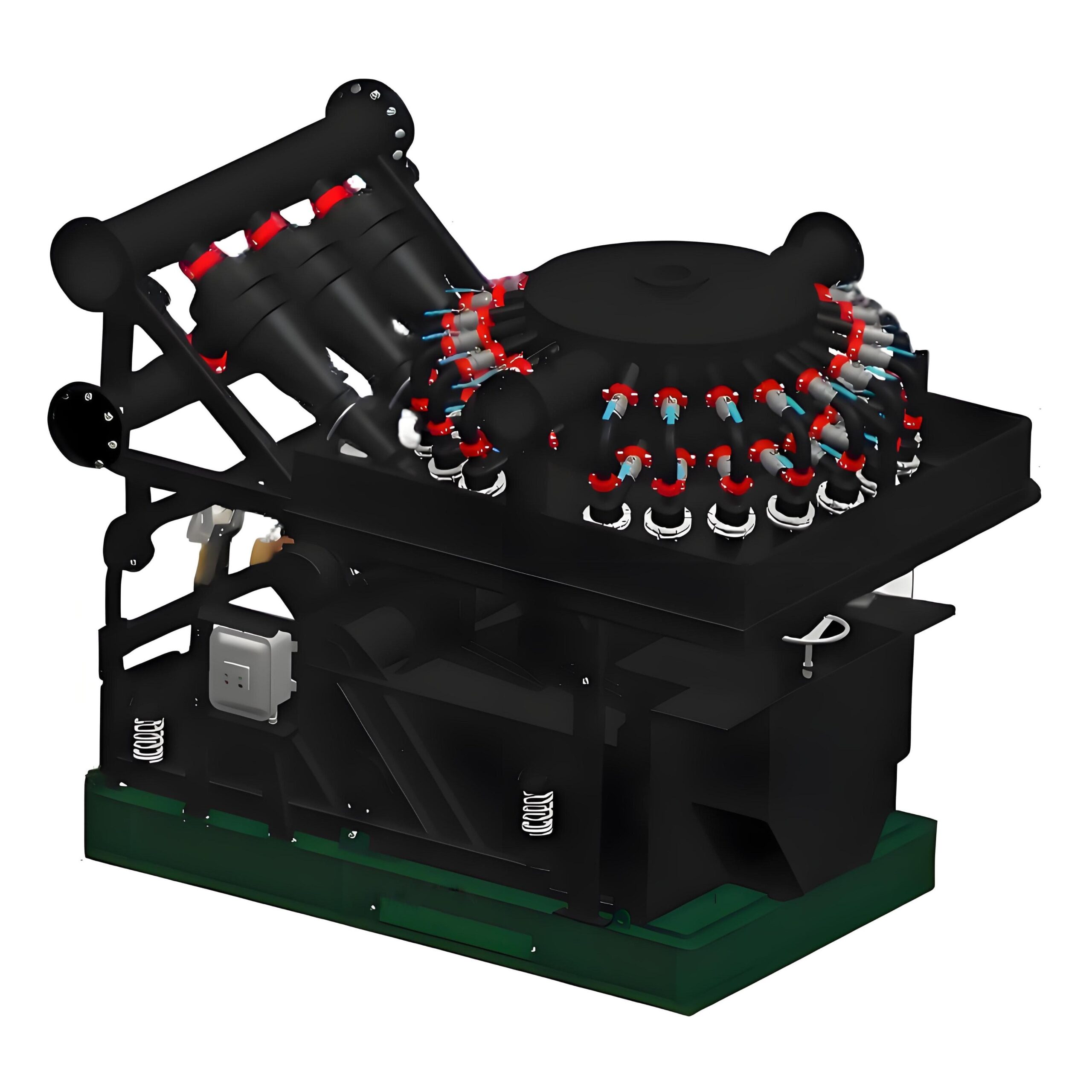

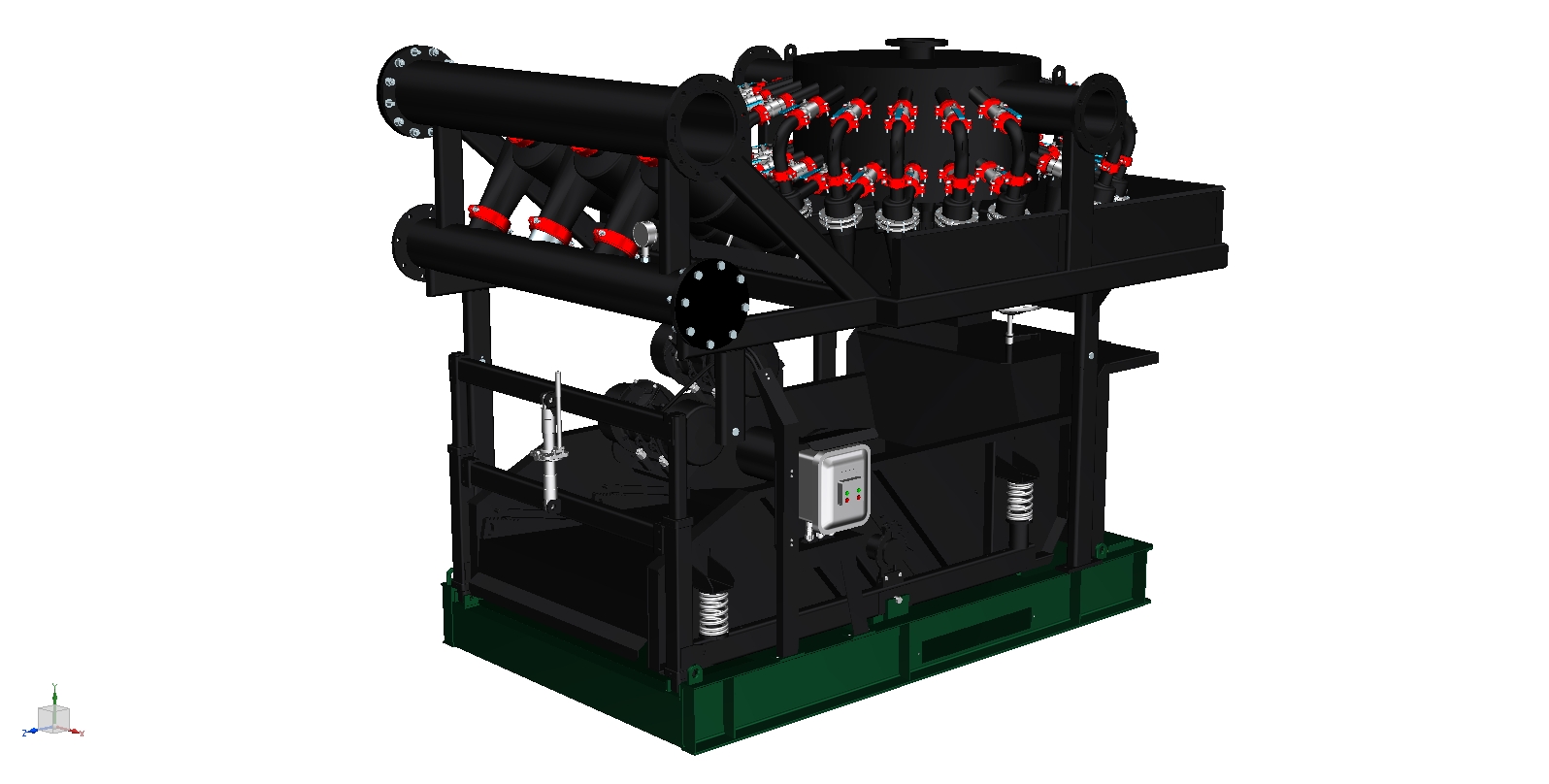

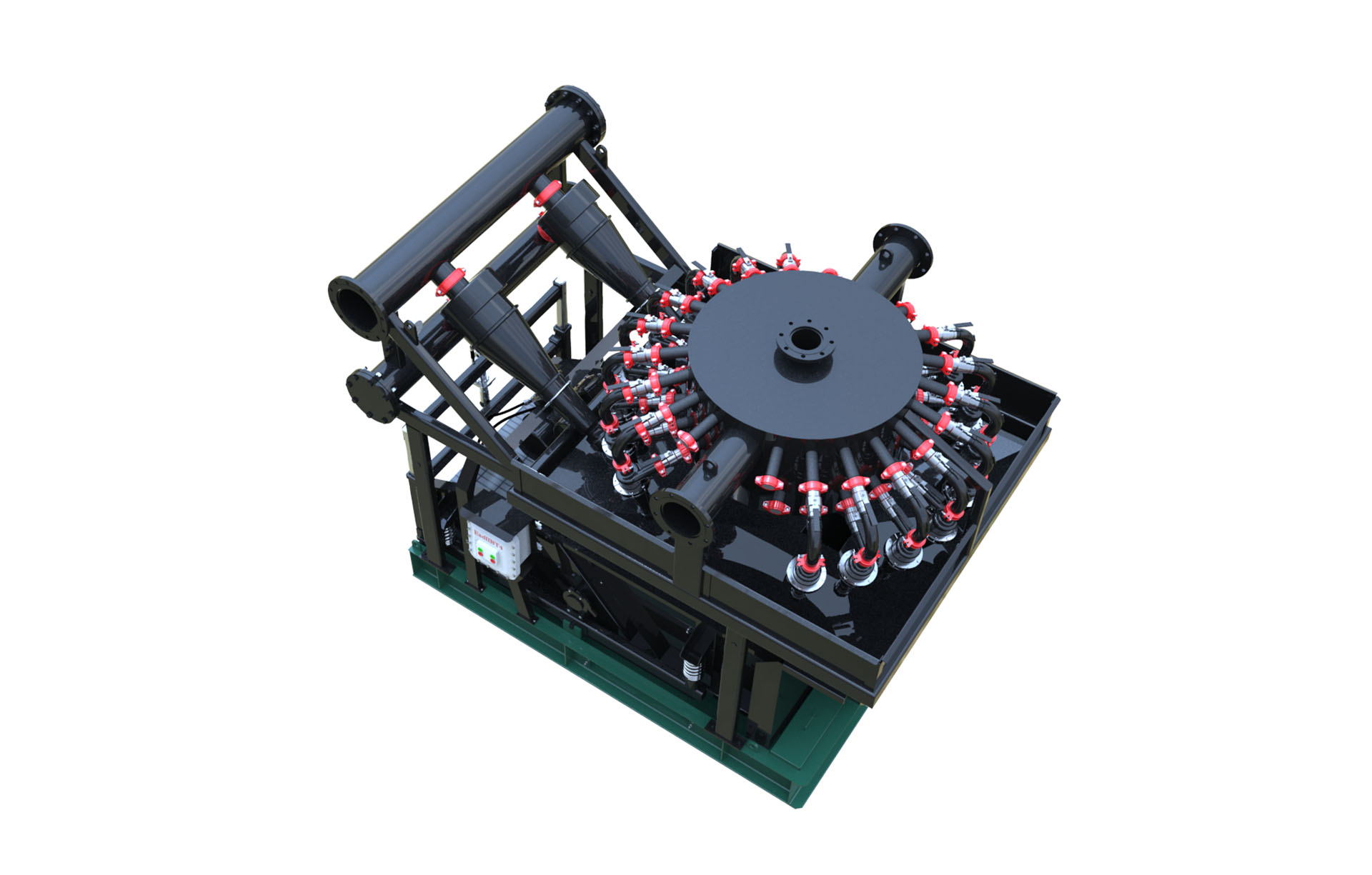

The working principle of MD316 Mud Cleaner is to screw the mud into the inner wall of the cyclone at a certain pressure and speed through the sand pump. Under the action of centrifugal force and gravity, the coarse particles sink spirally along the inner wall of the cyclone, discharge from the bottom flow port, and fall on the fine-mesh vibrating screen below; The rest of the medium spirals up along the cyclone and enters the next vibrating screen from the overflow port for processing.
 |
 |
Type Parameter
| Model number | MD216、MD316、MD320 |
| Mode of vibration | Liner |
| Motor type | Short Motor |
| Power (kW) /(hp) | 1.72 kW×2 |
| Vibration strength (G-Force) | 6.5～7.2G adjustable |
| Total screen area (㎡) /(ft2) | 2.7㎡ |
| Screen Angle adjustment range (°) | -1°～5° |
| Processing capacity (m3/h) /(GPM) | 240～320m³/h |
| Screen type | Flat screen |
| Screen size – Quantity (mm)/(in) | 585×1165－4 |
| Desander cyclone specifications | 250/10〞，300/12〞 |
| Number of sand removal cyclones | 2～3 |
| Sand cyclone separation size (μm) | 44～74μm |
| Desilting cyclone specifications | 100/4〞 |
| Number of desilting cyclone | 16～20 |
| Desilting cyclone separation size (μm) | 14～47μm |
| Noise (dB) | ＜85 |
| Size L*W*H (mm) /(in) | 3280×2180×3075 |
| Weight (kg) /(lbs) | 3450 |
Competitive Advantage

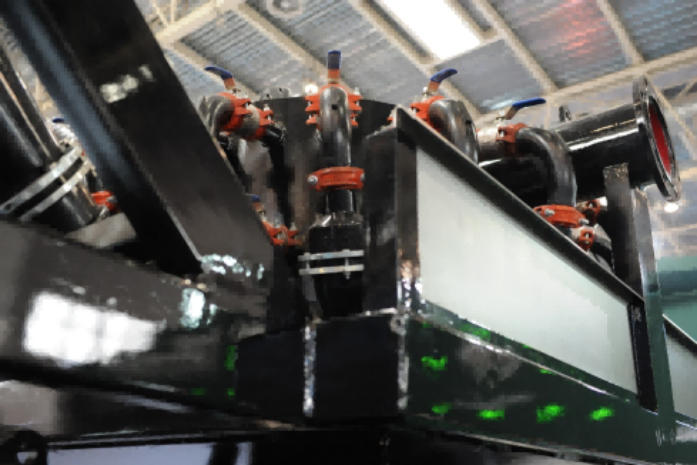

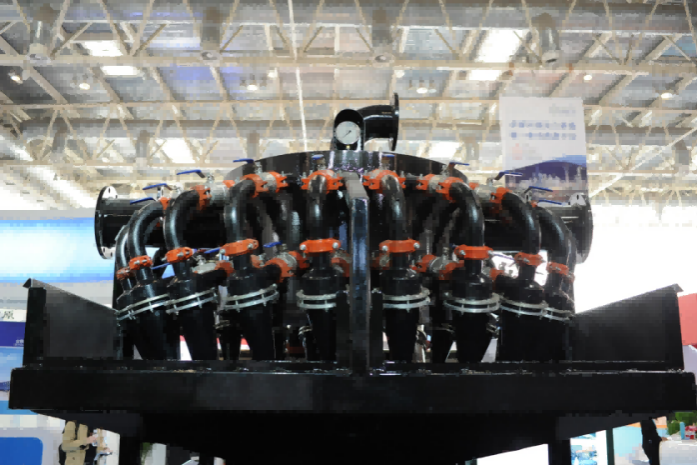

● Unique round desilter assembly design, removable stainless steel baffle, equipped with flow meter
● 10-inch desander and 4-inch desander are standard configurations, both of which are segmented removable and replaceable structures
● All equipped with individual ball valve control, easy maintenance and replacement
● The cyclone is made of polyurethane
Applications
● Oil drilling mud treatment
● Trenchless engineering mud treatment
● Mud and water separation in shield construction
