Specification for Composite Shaker Screen：
| Model | Brand&Model for shaker | Mesh Range | Dimension（L*W) | Weight kgs |
| KX-01 | NCS-300X2 | 20-325 | 1040*600mm | 1.6 |
| KX-02 | ZCN | 20-325 | 1400*460mm | 2.6 |
| KX-03 | NS-115/2 | 20-325 | 1150*1000mm | 2.9 |
| KX-04 | JSS(U.S.A) | 20-80 | 927*914mm | 2.3 |
| KX-05 | SSS(U.S.A) | 20-80 | 1524*1219mm | 4.6 |
| KX-06 | BRANDT 4*5 | 20-325 | 1524*1220mm | 5 |
Remarks:
Other models can be customized according to your specific sizes and requirements.
Product Overview:

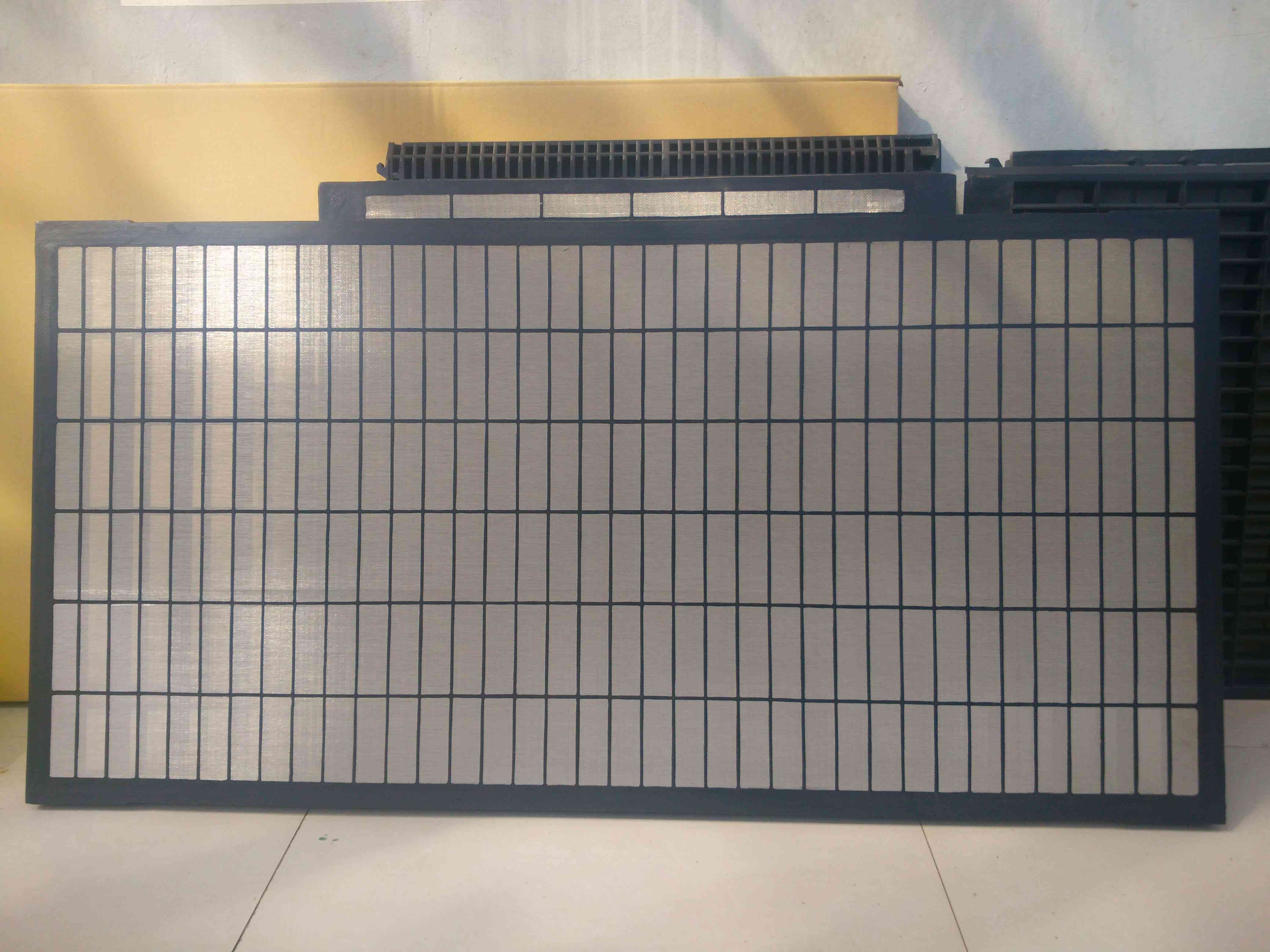

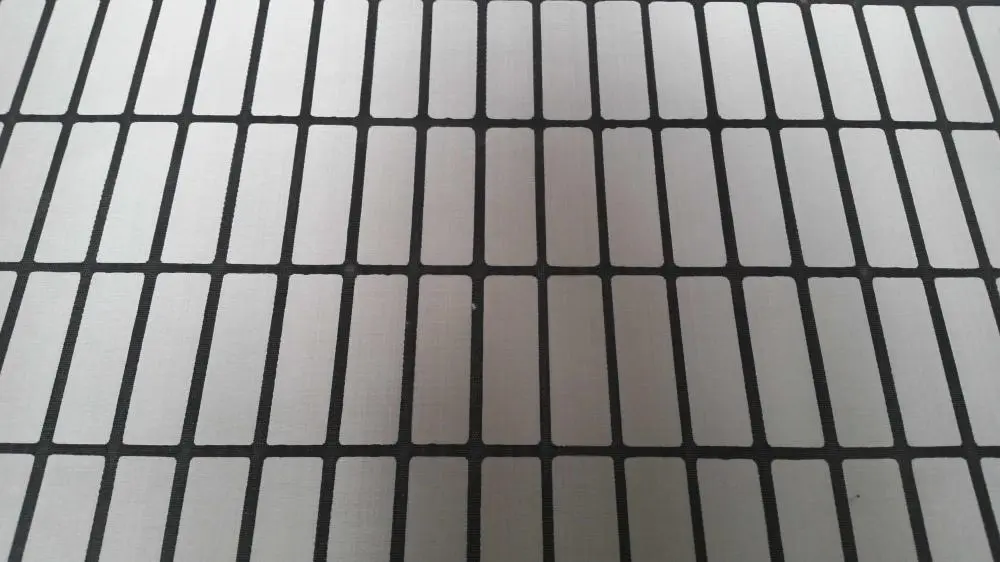

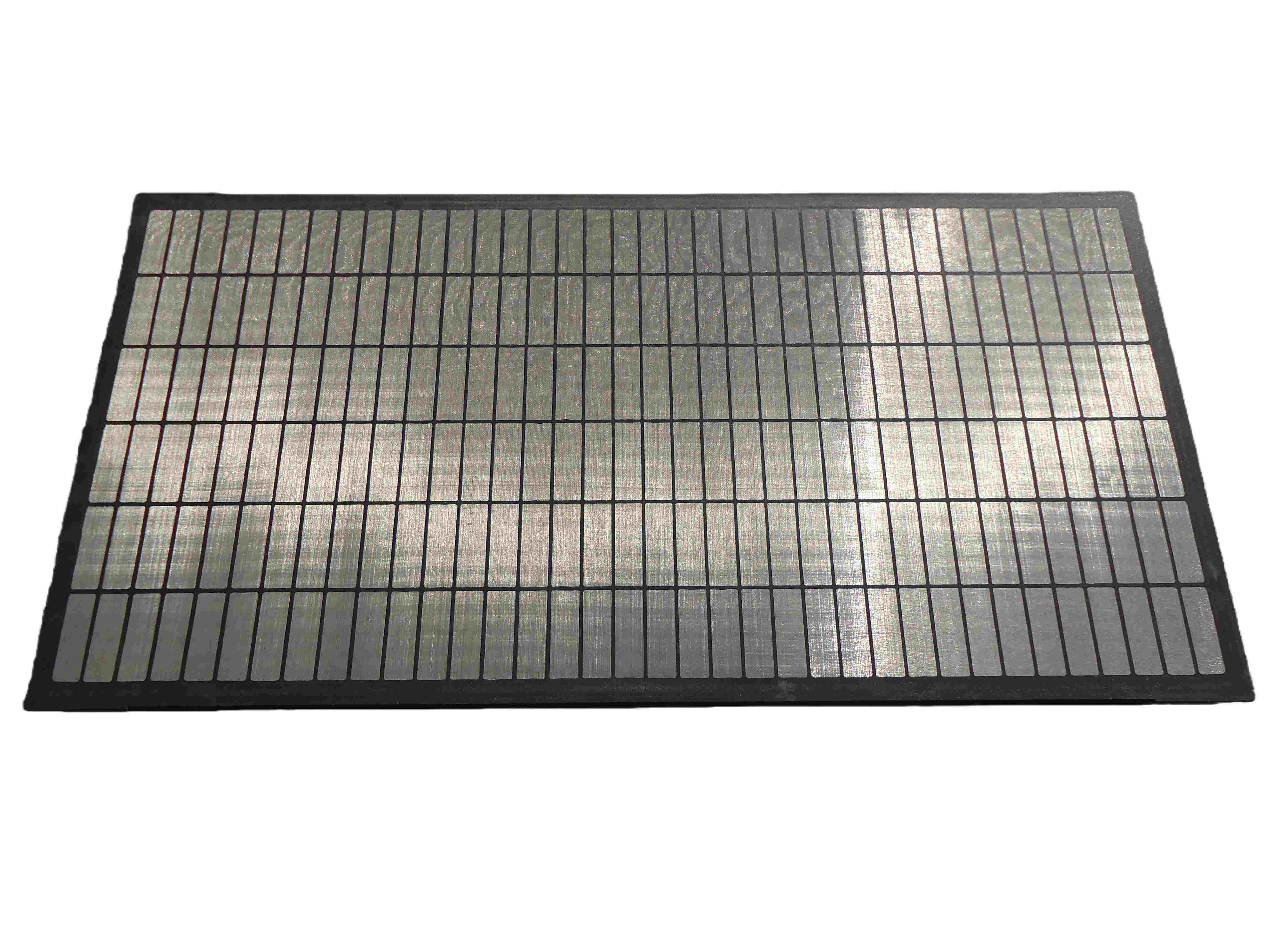

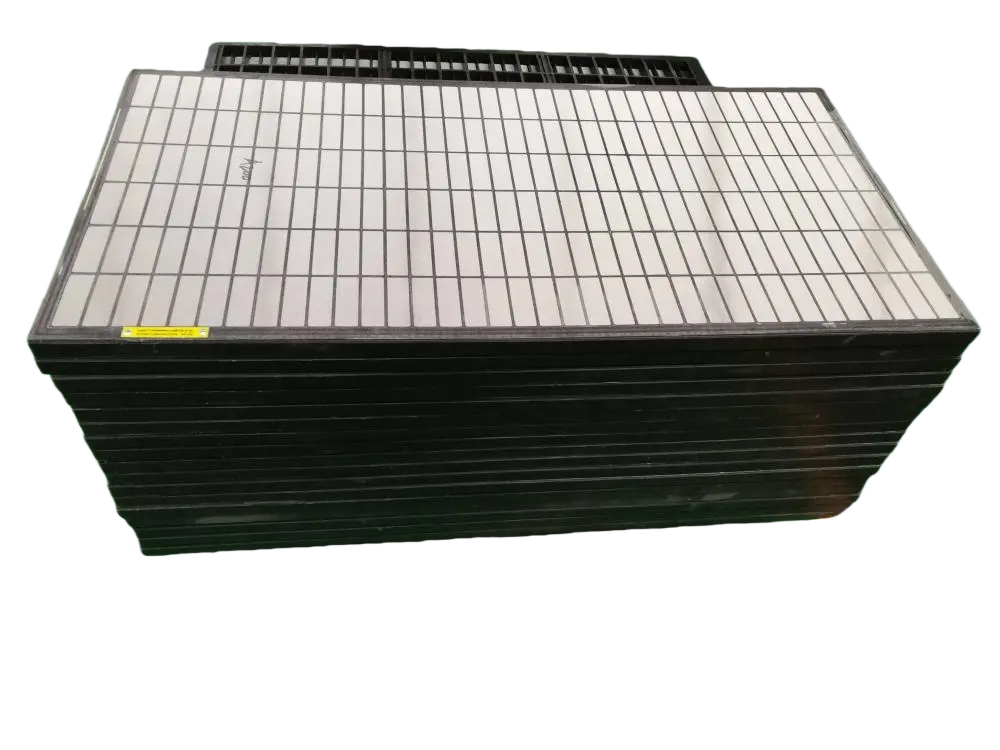

Composite shaker screens are essential consumables in the solids control systems for the oil and gas drilling industry. Consisting of a high-strength composite frame and multiple layers of stainless steel mesh which have different density. They represent a significant advancement over traditional steel-framed screens.
Key Advantages:
- Exceptional Durability: Composite frames resist abrasion, corrosion, and impact, extending screen life in harsh drilling environments.
- Optimized Separation: Higher screen tension with composite frames results in a more precise cut point and better solids removal, reducing mud loss.
- Lightweight: The lighter composite frame simplifies installation, removal, and handling while reducing shaker load.
Applications:
Composite shaker screens are essential in solids control systems for:
- Oil and Gas Drilling: Primarily for shale shakers to separate drill cuttings.
- Drilling Fluid Reclamation & Purification: Used with other equipment like desanders and centrifuges for multi-stage drilling fluid purification and recycling.
- Drilling Waste Management: Paired with cutting dryer to recover fluids.
- HDD and Infrastructure: Applicable in HDD construction and civil engineering for mud treatment.
