Introduction: Tackling the “Mud Challenge” in Trenchless Projects — Black Rhino’s Breakthrough Approach
In trenchless projects such as urban underground pipeline installation and oil and gas pipeline crossings, Horizontal Directional Drilling (HDD) has become a core construction method due to its minimal impact on surface traffic, vegetation, and buildings. However, the large amount of sand-laden waste slurry generated during HDD operations has long been a major challenge in the industry. Direct discharge not only causes severe soil and water pollution and violates environmental regulations, but also leads to substantial waste of drilling fluid materials, significantly increasing project costs.
Against this backdrop, Black Rhino Industrial, deeply engaged in the trenchless equipment sector, has developed the HDD Mud Recycling System. With its highly efficient purification and recycling technology, the system delivers both environmental and economic benefits. It has become an indispensable piece of equipment in trenchless construction, providing a professional solution to longstanding industry pain points.
I. Core Working Principle: The “Transformation Journey” from Waste Slurry to Clean Drilling Fluid
The core logic of Black Rhino Industrial’s HDD Mud Recycling System lies in its independently optimized multi-stage solid–liquid separation technology. By gradually purifying the sand-laden return slurry generated during drilling, the system restores the drilling fluid’s suspension, lubrication, and cuttings-carrying properties with high precision, ultimately enabling efficient recycling and reuse. The complete workflow consists of three key stages:
1. Coarse Particle Pre-Treatment.
The waste slurry generated during drilling first flows into a sedimentation pit for initial settling and is then pumped by Black Rhino’s customized high-head slurry pump into a dedicated shale shaker. Featuring a dual-motor synchronous vibration design and a wear-resistant coarse mesh, the shaker rapidly removes gravel, large drill cuttings, and other coarse particles larger than 0.5 mm. This prevents blockage in downstream equipment and establishes a solid foundation for deep purification. The processed slurry then flows into a large-capacity storage tank coated with an anti-corrosion lining for extended service life.
2. Fine Particle Deep Separation.
Slurry from the storage tank is pressurized by Black Rhino’s high-efficiency sand pump and tangentially injected into a desander’s hydrocyclone through a customized pipeline. The hydrocyclone, optimized via fluid dynamics design, uses centrifugal force generated by high-speed rotation to accurately remove fine particles sized 0.074–0.5 mm. The separated material is discharged through the underflow nozzle onto the shaker’s fine mesh for dewatering, forming dry solids with moisture content below 30% for easy disposal. The desanded slurry overflows from the top outlet into the intermediate tank, achieving a separation efficiency more than 15% higher than conventional equipment.
3. Drilling Fluid Optimization and Recirculation.
If high drilling-fluid cleanliness is required, slurry in the intermediate tank can be further processed by Black Rhino’s desilter. Equipped with ultra-fine separation filters, the unit removes clay particles and colloids, reducing the slurry’s sand content to below 0.5%. The purified drilling fluid is then delivered to Black Rhino’s intelligent mixing system, which automatically adds bentonite and chemical additives as needed. Its variable-frequency mixing ensures accurate proportions and uniform blending. The optimized drilling fluid is then pumped back to the HDD rig for continued drilling. This closed-loop circulation minimizes resource consumption and ensures continuous reuse of drilling fluid.
II. Core Components: Black Rhino Industrial’s Coordinated “Purification Team”

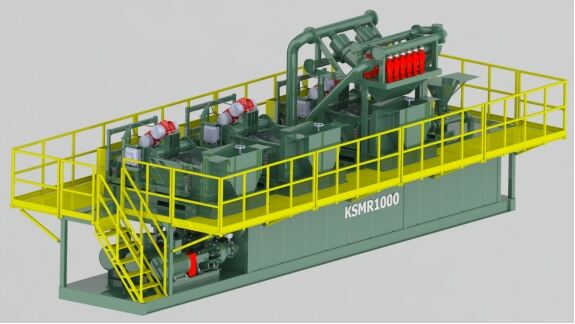

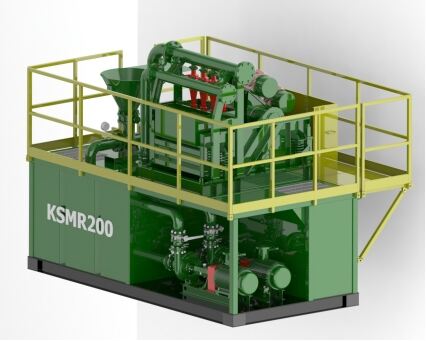

A complete HDD Mud Recycling System by Black Rhino Industrial is an integrated assembly of independently developed functional modules, each rigorously tested and optimized for high separation efficiency and stable performance:
Solids Control Equipment:
The system’s purification core includes the custom shale shaker, high-efficiency desander, and precision desilter. The shaker features modular screens for easy replacement, while the desander and desilter utilize Black Rhino’s proprietary hydrocyclone technology for accurate fine-particle separation.
Power & Transfer Equipment:
Customized slurry pumps and sand pumps deliver strong, stable power for slurry transfer. With adjustable head and flow to match project volume, and pump bodies made of wear-resistant alloy, they withstand prolonged operation with high-sand-content slurry, ensuring efficient flow between all system components.
Mixing & Storage Units:
Large-capacity storage tanks and intermediate tanks provide buffering and temporary slurry holding. Equipped with liquid-level sensors, they allow real-time monitoring. The intelligent mixing system uses a PLC control module to automatically adjust additive input based on slurry properties, ensuring consistent drilling-fluid performance across varying geological conditions.
Auxiliary Support Systems:
The electrical control system adopts explosion-proof, dust-proof, and rain-proof design and meets IP54 protection standards, ensuring safe operation in harsh outdoor environments. The modular tank structure features lightweight high-strength panels, convenient access ports, and drainage valves, significantly reducing maintenance effort and improving operational efficiency.
III. Key Advantages: Enabling Both Environmental Protection and High Efficiency
Black Rhino Industrial’s HDD Mud Recycling System has become essential equipment in trenchless engineering thanks to its outstanding advantages in environmental protection, cost savings, and construction efficiency—perfectly aligned with practical project needs.
Environmental Benefits
The system reduces waste slurry discharge by more than 90% and eliminates soil and groundwater pollution at the source, fully meeting national and local environmental regulations. The dried cuttings can be centrally transported for recycling, avoiding secondary pollution and reflecting Black Rhino’s commitment to “green engineering equipment.”
Economic Benefits
By recycling bentonite, polymers, and other drilling-fluid materials, combined with its high purification capability, the system reduces new drilling-fluid procurement costs by 60%–80%. Lower waste slurry discharge also eliminates high disposal fees. Field results show that one system typically recovers its investment within 3–6 months, significantly cutting total project costs.
Construction Efficiency Benefits
The integrated, compact design reduces footprint by 20% compared with traditional equipment—ideal for confined urban job sites. Installation and removal require only 4–6 workers, with site relocation completed in 24 hours. Stable drilling fluid reduces bit wear by 30% and lowers the risk of stuck pipe or hole collapse, ensuring continuous drilling progress and shortening project timelines.
High Customizability
Black Rhino Industrial offers flexible configurations based on geology (sand, clay, rock), drilling diameter, and processing requirements. Systems can be tailored for capacities ranging from 50 m³/h to 2,000 m³/h, achieving true “one project, one solution.”
IV. Application Scenarios: A Versatile “Purification Tool” Across Industries
Black Rhino Industrial’s HDD Mud Recycling System is no longer limited to HDD projects. With stable performance and high customizability, it has expanded into multiple drilling-fluid-dependent construction fields and has become the preferred solution for many engineering contractors:
Core Applications:
Ideal for urban gas, water supply, and drainage pipeline crossings, where minimal disturbance to residents is essential. In long-distance oil and gas pipeline river/railway crossings, its high purification efficiency ensures stable operation under harsh conditions. For telecom and power cable installation, the compact footprint fits narrow roadside construction sites.
Extended Applications:
Suitable for slurry-balance tunnel boring, efficiently purifying TBM slurry; for drilling operations in hydropower projects, metro construction, and foundation pile formation, ensuring optimal slurry performance; and for large-diameter bridge foundations and shafts, where slurry recycling significantly reduces costs. The system has been used in multiple national-level major projects with excellent feedback.
Whether supporting underground utility upgrades in busy cities or long-distance pipeline crossings in remote regions, Black Rhino Industrial’s HDD Mud Recycling System delivers reliable, efficient, and stable performance—truly a trusted partner in trenchless engineering.
As environmental awareness deepens and the demand for cost control in engineering projects continues to rise, Black Rhino Industrial’s HDD Mud Recycling System has evolved from an “optional device” to a “mandatory component,” becoming an important benchmark for evaluating the technical capability of trenchless construction. The system not only solves the longstanding challenges of slurry pollution and material waste but also unifies environmental and economic benefits through technological innovation and customized services, injecting strong momentum into the green and sustainable development of underground engineering.
Looking ahead, Black Rhino Industrial will continue to advance research and development in trenchless equipment, integrating intelligent and modular technologies to further enhance processing efficiency while reducing energy consumption and simplifying operation. By continuously empowering a wide range of underground construction projects, the company aims to support the development of more environmentally friendly and highly efficient modern infrastructure systems, contributing greater value to the evolution of the trenchless industry.
