Geological exploration demands high-performance equipment that operates reliably under challenging conditions. Mountainous terrains, high altitudes, and extreme temperature fluctuations often compromise standard drilling machinery. To address these field bottlenecks, Black Rhino engineered the HDX-800 / HDX-1500 Crawler-Mounted Top-Drive Core Drilling Rig series. This third-generation wireline coring rig integrates robust structural design with advanced hydraulic engineering to deliver superior performance in demanding exploration projects.
Purpose-Built for Complex Climates

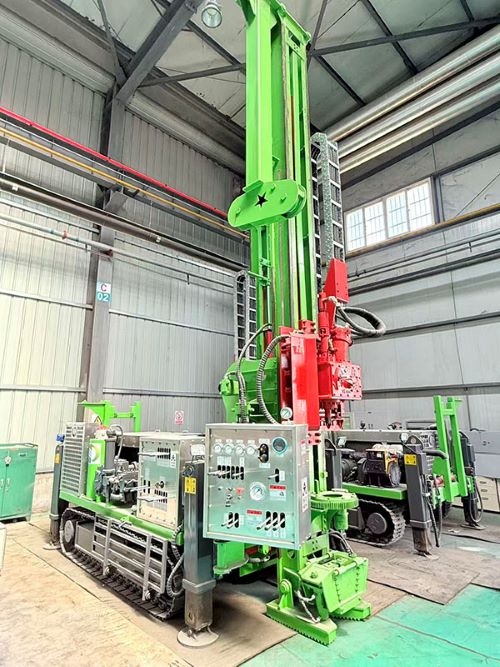

The HDX-800 / HDX-1500 Crawler-Mounted Top-Drive Core Drilling Rig primarily utilizes diamond bits to execute precise core drilling across varying diameters. It serves as an efficient solution for deep-hole mineral exploration and geotechnical engineering exploration, especially in remote topography. The machine maintains operational stability in high-latitude and high-altitude locations where thin air typically causes power degradation. A robust thermal management system ensures uninterrupted performance in both hyper-arid desert heat and sub-zero Arctic environments.
Core Technical Features and Reliability
The mechanical architecture of the HDX series core drilling rig focuses on component synergy, maximizing power output while minimizing the overall structural footprint.
- Heavy-Duty Powertrain: The rig integrates premium Yuchai diesel engines paired with Komatsu variable displacement piston pumps. This combination supplies high torque and immediate hydraulic response, providing critical power margins needed to handle downhole emergencies like stuck drill strings.
- Integrated Hydraulic Layout: The engine, heavy-duty winch, and high-pressure mud pump share a fully hydraulic, centralized layout. This design eliminates unnecessary mechanical linkages, resulting in a compact structure and simplified maintenance access.
- Advanced Altitude Cooling: The rig features a custom-designed radiator layout. The system prevents engine overheating at high altitudes, maintaining constant hydraulic pressure during prolonged deep-hole drilling.
Structure Safety and Operational Efficiency
The HDX series core drilling rig utilizes a mature hydraulic circuit designed for smooth power transition. An independent hydraulic oil cooler maintains optimal fluid temperatures, extending component life. To prevent high-pressure ruptures, all primary hydraulic lines utilize four-layer steel wire reinforced hoses.
For feed operations, a specialized cylinder-chain speed-multiplying mechanism delivers steady pressure to the top-drive power head. The heavy-duty power head remains completely stable during high-rotation drilling, minimizing borehole deviation and increasing core recovery rates.

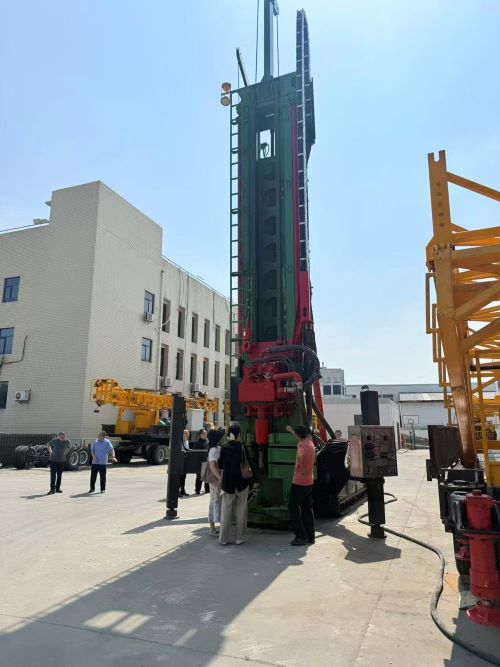

The HDX-800 / HDX-1500 Crawler-Mounted Top-Drive Core Drilling Rig features a 3.6-meter mast stroke, allowing operators to trip 3-meter drill rods in a single continuous pass. It maintains full compatibility with standard XY-series drill rods. A dual-cylinder lateral shifting system moves the power head away from the borehole center line effortlessly for rapid wireline coring.
Safety remains paramount in rugged terrains. The crawler-mounted chassis utilizes an advanced hydraulic walking system controlled via a remote handset. Operators can safely maneuver the rig across steep slopes from a distance of up to 150 meters, keeping field crews entirely out of hazardous zones during site mobilization.
