Main Applications

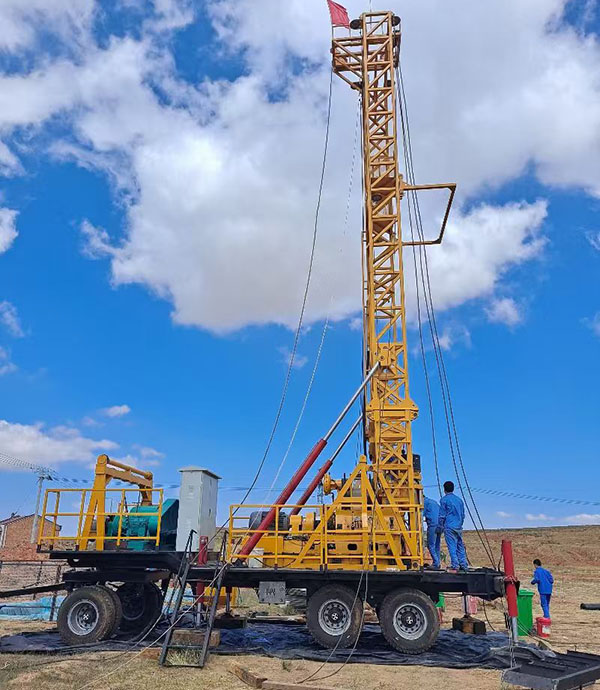

The HXY-2000 Heavy-Duty Trailer-Mounted Drilling Rig is specially designed for deep geological exploration and specialized process-hole drilling applications. It is capable of operating in harsh environments, including unpaved roads, remote Gobi regions, deserts, and other challenging field conditions. As an upgraded replacement for conventional trailer-mounted drilling rigs, the HXY-2000 retains the proven advantages of traditional models while significantly improving drilling capacity, mast load capability, operational efficiency, and winch handling performance. It effectively addresses the limitations commonly found in older rigs, including insufficient drilling capability, limited mast capacity, lengthy auxiliary operations, and inadequate load performance. The rig incorporates a range of advanced technologies together with multiple patented innovations developed by our company. Compared with conventional trailer-mounted drilling rigs, it delivers substantial improvements in operator comfort, operational safety, and machine control, providing a more efficient and user-friendly drilling experience.
Technical Specifications
|
HXY-2000C Core Drilling Rig |
Drilling Capacity | Φ55.5 drill pipe | 1800 m |
| Φ60 drill pipe | 1600 m | ||
| Rotary Head (Gearbox) | Spindle Speeds | Forward High Range: 974, 685, 448, 352 r/min
Forward Low Range: 266, 247, 162, 96 r/min Reverse High Range: 187 r/min Reverse Low Range: 67 r/min |
|
| Spindle Stroke | 0.72 m | ||
| Pull-Up Capacity | (196kN) 320 kN | ||
| Feed-Down Force | (146kN) 243kN | ||
| Hoist (Winch) | Hoisting Capacity | Single-drum, first-speed hoisting force: 76 kN (55 kW) / 100 kN (75 kW) | |
| Wire Rope Capacity / Size | 140 m / Ø22 mm | ||
| Hydraulic Feed Cylinder | Stroke | 600mm | |
| Power Unit | Electric motor | 55KW OR 75KW;1460r/min | |
| Overall Dimensions | 3208*1270*1544mm | ||
| Total Weight | 5450kg | ||
|
Core Drilling Rig Trailer Platform |
Effective Mast Height | 13.5m |
| Drilling Capacity | Two sheaves at the front and two at the rear, equipped with load/tension sensors (automatic shutdown upon overload). | |
| Rated Crown Block Load | 500 kN | |
| Second Platform Height (on mast) | 8.5 m | |
| Trailer Transport Dimensions (L×W×H) | 11.5 × 3.0 × 4.2 m | |
| Trailer Working Dimensions (L×W×H) | 11.0 × 3.0 × 15.0 m | |
| Hydraulic System Design | Main pump: 32 mL/r, 20 MPa; Auxiliary pump: 20 mL/r, 20 MPa; Drill valve: 10 MPa; Auxiliary valve: 20 MPa | |
| Outrigger Cylinders | Four independently operated cylinders, Φ125×Φ90, stroke 1m | |
| Mast Material & Specifications | Q235-A / 16Mn / 100 / 70 / 60 / square tube, steel plate, etc. | |
| Towing/Travel Speed Limit | Road: ≤40 km/h; Off-road: ≤20 km/h | |
| Platform Stand Capacity | 1350m, 9m stands, total 150 stands | |
| Platform Static Load Test | Third-party test report or finite element analysis report available |
Main Features
- Stronger drilling capacity: Equipped with the 2000C drill, the rig offers high torque, stronger drilling capacity, and greater hoisting capability.
- Safer mast operation: Equipped with a mast tension sensor (optional) that triggers an alarm and automatically shuts down the rig when the tension exceeds the preset value, preventing mast overload.
- Mast: Foldable mast with a height of 14m, meeting the hoisting requirements for 9m stands and road transport regulations. Rated load: 50T. Large cross-section, high rigidity and strength, with hydraulic mast raising for safe operation.
- Chassis with outrigger hydraulic legs: The expanded support area effectively improves rig stability.
- Wide application: Suitable for conventional drilling, hydrogeological boreholes, and process hole drilling.
