In modern infrastructure construction, slurry treatment efficiency and environmental compliance are critical to successful project management. The KD Series slurry separation plant, developed by Black Rhino , is specifically designed for circulation drilling and shield tunneling. It provides an integrated solution for slurry purification, recycling, and waste reduction, helping improve operational efficiency while meeting environmental requirements.
KD Series: Slurry Treatment Equipment for Diverse Working Conditions

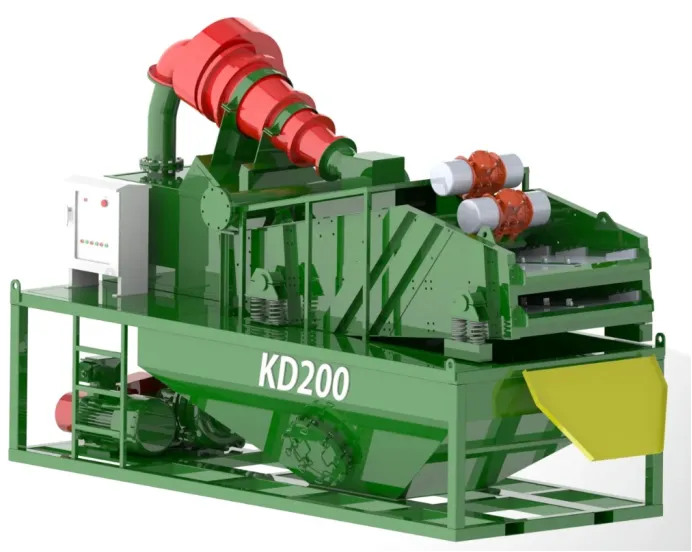

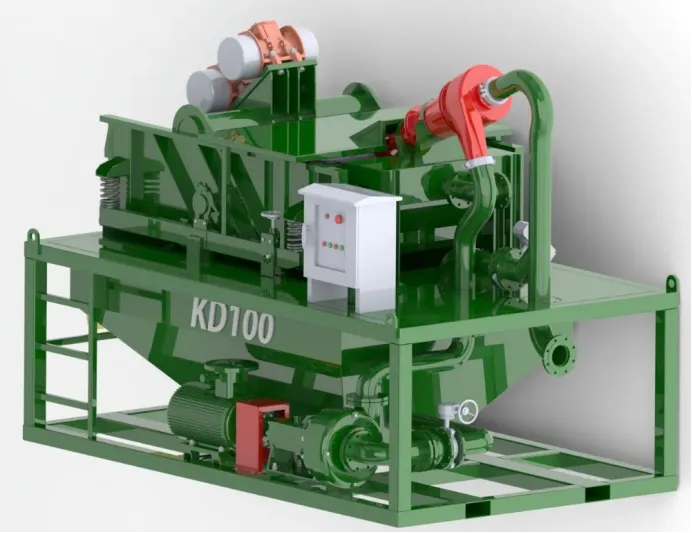

The KOSUN KD Series slurry separation plant is designed for efficient slurry treatment in slurry shield TBM projects, diaphragm wall construction, and piling foundations. It optimizes slurry properties, improves drilling quality, and enhances operational efficiency while ensuring the safe operation of excavation equipment.
By increasing the slurry recycling rate, the slurry separation plant helps reduce construction costs and minimize slurry discharge, supporting environmentally friendly construction practices.
All key components and wear parts are manufactured from corrosion-resistant and abrasion-resistant materials, ensuring long service life, low failure rates, and reliable performance in complex working conditions.
Modular Design & High-Precision Slurry Separation Technology
The KD Series slurry separation plant features a modular design and advanced separation technology. It consists of three core modules:
- Scalping Module: Removes oversized rocks and coarse debris as a pre-screening step
- Desanding Module: Uses hydrocyclones and shale shakers to remove sand-sized particles
- Desilting Module: Uses secondary hydrocyclones for fine particle separation
The system operates using a closed-loop circulation process, producing low-moisture solid waste and significantly reducing environmental impact.
High Integration & Versatile Slurry Separation Plant
The KOSUN KD Series slurry separation plant is designed with high integration and versatility, making it suitable for a wide range of slurry treatment applications.
Modular & Compact Design: Built on ISO container standards, the system enables easy transportation and rapid installation. Its compact structure, combined with foldable walkways and platforms, minimizes the onsite footprint.
Easy Operation & Maintenance: The simplified and efficient process flow reduces the complexity of installation, operation, and routine maintenance, improving overall working efficiency.
KD Series: Flexible and Customizable Slurry Treatment Solutions
The KD Series slurry separation plant offers flexible configuration options to meet different project requirements:
Adjustable Performance Parameters: Shale shaker G-force, deck angle, and screen mesh size (API) can be adjusted to handle various geological conditions.
Custom Capacity Configuration: The system supports customized D50 cut-point control and multiple processing capacities based on material characteristics.
Flexible Power Supply: Compatible with different global electrical standards or equipped with an onboard diesel generator for independent operation.
Mobile Deployment: Available in skid-mounted or trailer-mounted designs for easy relocation between job sites.
Applications of the KD Slurry Separation Plant
The KOSUN KD Series slurry separation plant is widely used in various slurry treatment applications, including:
- Slurry shield TBM projects for efficient slurry recycling and purification
- Bored piling construction, compatible with rotary drilling rigs, circulation rigs, and impact drills
- Diaphragm wall construction, suitable for hydraulic grabs and trench cutters (hydrofraise)
- Trenchless drilling, including horizontal directional drilling (HDD) and slurry pipe jacking
