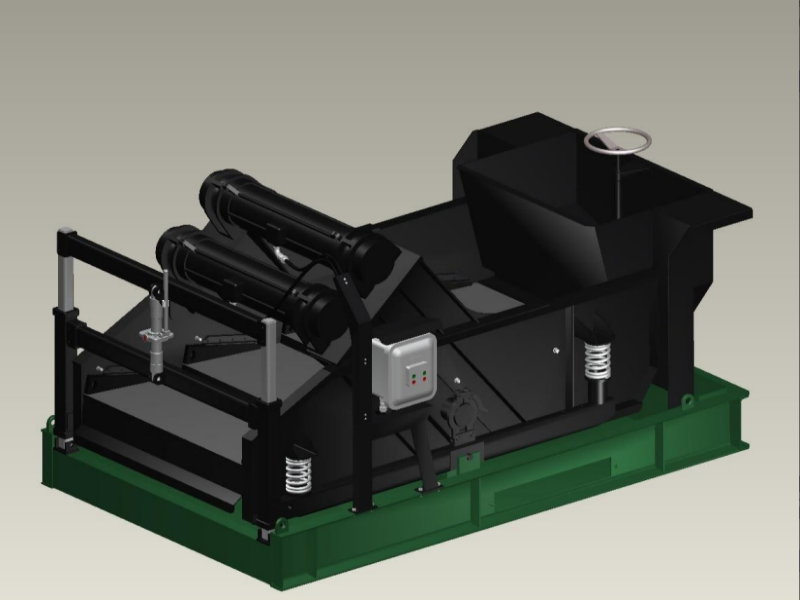

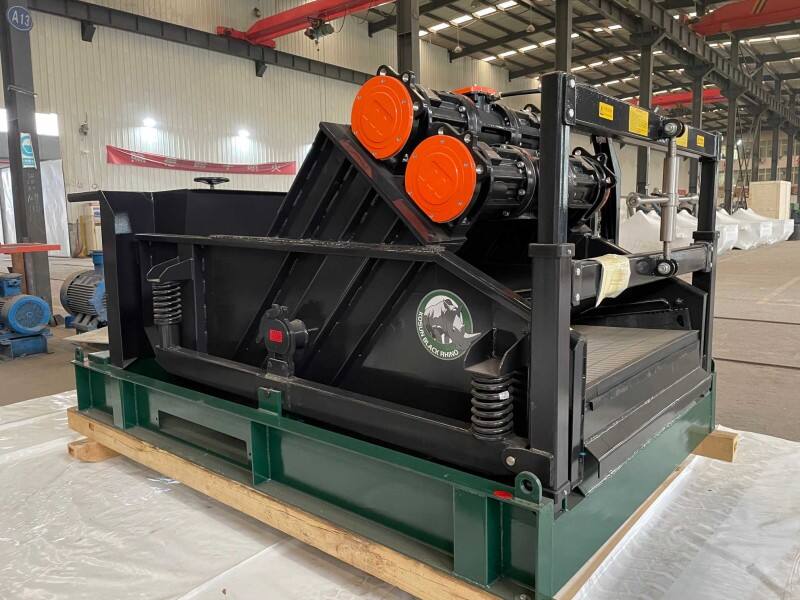

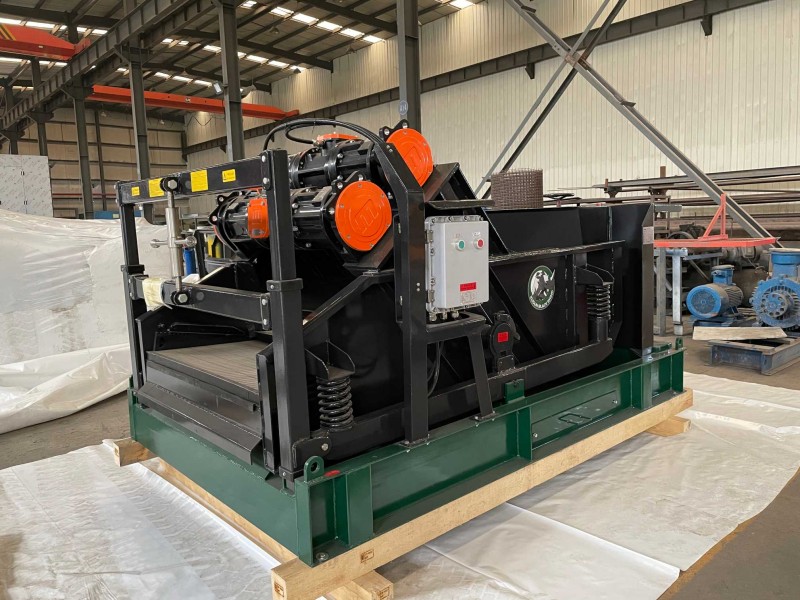

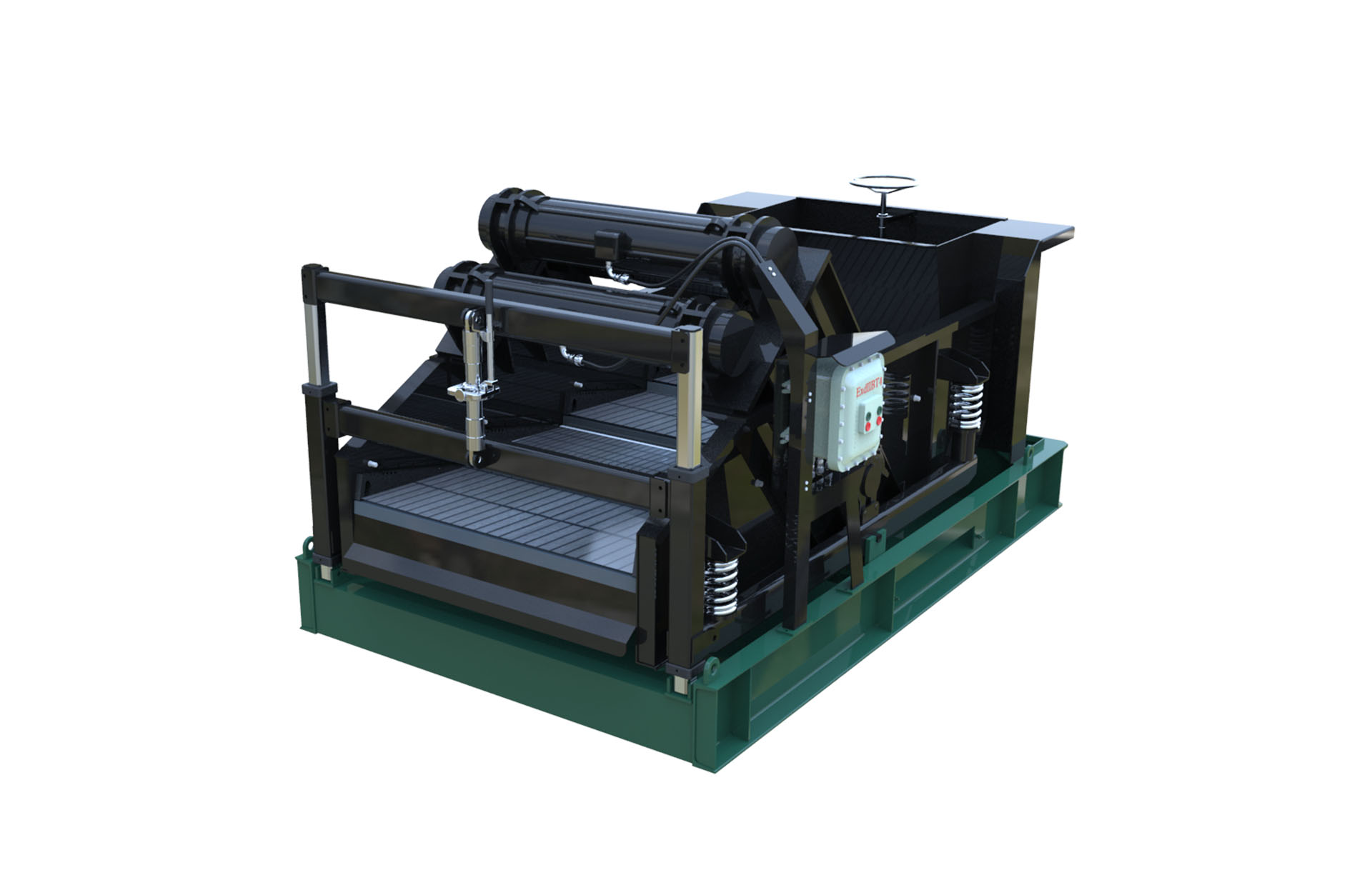

BLACK RHINO Shale Shaker is a high-frequency linear vibrating machine for onshore/offshore projects. It features four screen frames, two vibrating motors, and adjustable screen angle (AWD) to remove drilled solids. Using top-quality materials and advanced technology, it offers reliable, long-lasting performance for mud engineers.
Description
For onshore and offshore projects,BLACK RHINO Shale Shaker working as a high frequency linear vibrating machine with four screen frames and two vibrating motors,as well as the feature of manually adjusting screen frame angle while drilling(AWD) to remore detrimental drilled solids from the mud system.With the world’s leading concept and technology,BLACK RHINO uses only the highest quality materials in the manufacturing of the BLACK RHINO Shale Shaker,the rugged design provides each mud engineer years of reliable operation on rig site.
 |
 |
Model Parameters
Model No. |
BLACK RHINO Shale Shaker |
Line of mode |
Linear |
Motor type |
Long motor/Martin motor |
Power (kW) /(hp) |
1.86 kW×2 |
Vibration strength (G-Force) |
6.5～7.2G adjustable |
Screen total area (㎡) /(ft2) |
2.7㎡ |
Screen Angle adjustment range |
-1°～5° |
Processing capacity (m3/h) /(GPM) |
136～170m³/h |
Screen Type |
Flat screen |
Screen size (mm)/(in) |
585×1165 |
Number of screens |
4 |
Noise (dB) |
＜85 |
Dimensions L*W*H (mm) /(in) |
2960×1856×1522 |
Weight (kg) /(lbs) |
1925 |
Competitive Advantage

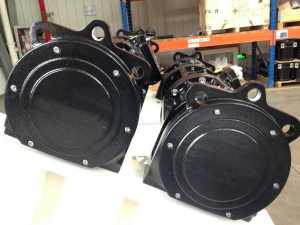

● Equipped with international first-line brand Martin Engineering ® 1.86kW long excitation motor, durable.

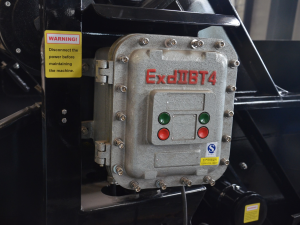

● Explosion-proof electric control box is composed of aluminum alloy tightly cast shell, high protection level.

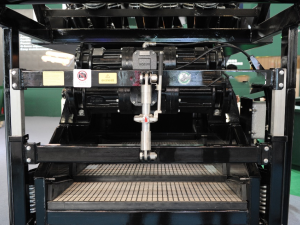

● Patented AWD screen box Angle adjustment device, Angle adjustment range -1° to + 5°, optimize screening effect, adapt to different drilling conditions.

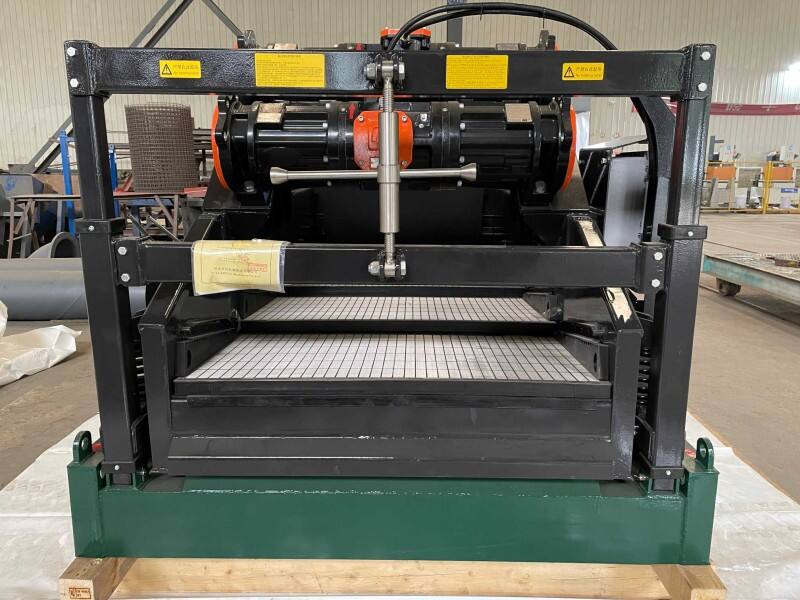

● Fast screen box locking device, easy to transport.

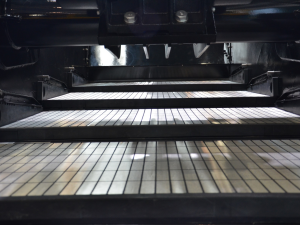

● Flat screen design, large flow area of 2.7 square meters, wedge block compression structure, can be directly replaced with MONGOOSE PRO.

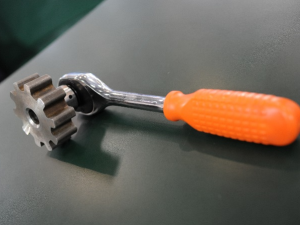

● Special quick replacement screen structure design and special tools.

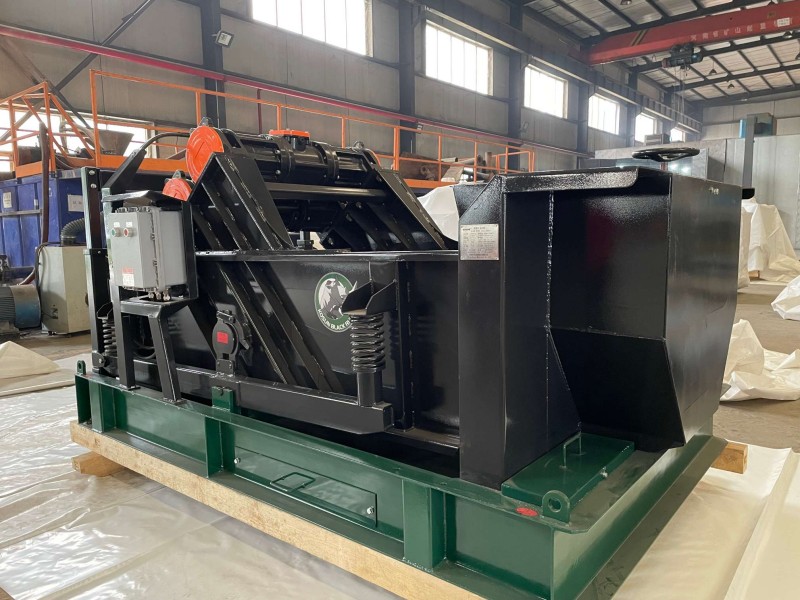

● Weir feed box, equipped with two special tool boxes, hand wheel to adjust the underflow valve.
Application Fields
The BLACK RHINO Shaker is an integral part of the oil drilling operation and is used to separate solid particles (such as cuttings) from the drilling fluid to ensure that the drilling fluid is clean and recycled. Application areas mainly include the following aspects:
● Oil and gas drilling
● Geological exploration
● CBM development
● Shale gas development
● Geothermal drilling
● Mine drilling
● Environmental Engineering
● Offshore drilling
● Horizontal and directional drilling
Application Scenarios of Black Rhino Products
Drilling fluid purification systems
Cutting treatment and recovery
Waste mud and sludge dewatering
Drilling waste minimization and recycling
Mining and mineral processing tailings treatment
Sand and aggregate washing wastewater recycling
Chemical and pharmaceutical slurry dewatering
Oil-water separation in refinery and petrochemical plants
Coolant and machining fluid recycling
Emulsion breaking and hydrocarbon removal
Solids control in CBM exploration and production
Drilling waste management and fluid recycling
Closed-loop drilling cleaning systems
Mud recycling systems for pipeline installation
Slurry separation and bentonite recovery
Urban crossing and river crossing drilling support
Soil conditioning and slurry treatment in TBM shields
Separation and recycling of muck and additives
Tunnel spoil management and water reuse
FAQ
Q: What types of equipment do you mainly produce?
A:Black Rhino focuses on the manufacturing of high-end equipment in the oil and gas and trenchless drilling fields. Its main products include solid control systems, slurry mixing devices, drilling waste treatment equipment, centrifuges, etc., which are widely used in engineering scenarios such as oil drilling, directional crossing, and environmental protection.
Q: Does your equipment support customized requirements?
A: Yes, we can provide flexible customization of equipment size, functions and configurations based on the on-site conditions and specific technical requirements of customers, ensuring a perfect match with existing equipment or vehicles and meeting the diverse needs of different regions and projects.
Q: Does your products comply with international standards and certifications?
A: We has passed the ISO 9001 quality management system certification. Some of its products have international certifications such as CE and API. It strictly follows industry standards to ensure that the equipment meets international market demands in terms of performance, safety and environmental protection.
Q: Can you provide global after-sales service and technical support?
A: Yes, we have service outlets in many regions around the world, offering a 24-month product quality guarantee as well as lifetime technical support and after-sales consultation services to ensure the stable operation of customers' equipment and respond promptly to all kinds of technical demands.
Q: Do you have any experience in overseas project cooperation?
A:Our products have been exported to over 70 countries and regions in Europe, America, the Middle East, Southeast Asia, Oceania and so on. It has established long-term cooperative relationships with many international energy and engineering enterprises and has rich experience in overseas project delivery and service.
