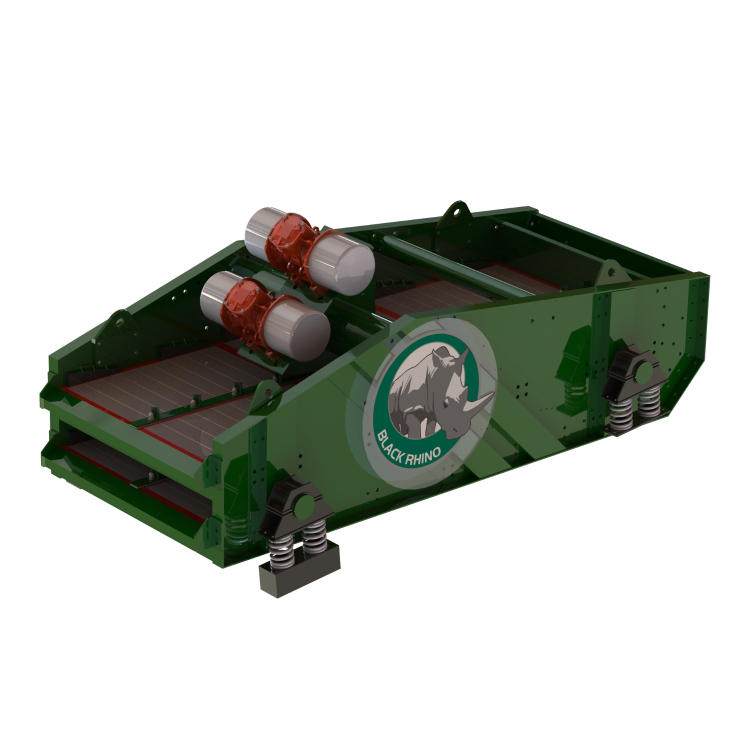

The LS606 series Shale Shaker is a highly efficient solid-liquid separation device capable of rapidly processing large volumes of slurry to meet the demands of major infrastructure projects.
Product Description
The LS606 series Shale Shaker is a highly efficient solid-liquid separation device capable of rapidly processing large volumes of slurry to meet the demands of major infrastructure projects. To adapt to ever-changing slurry and cuttings conditions, the LS606 Shale Shaker is equipped with slotted screen panels, demonstrating significant advantages in the field of infrastructure slurry treatment.
 |
 |
 |
 |
Model Parameters
Model No. |
LS606 Shale Shaker |
Line of mode |
Linear |
Motor type |
Short motor |
Power（kW）/(hp) |
2.9 kW×2 |
Vibration Strength（G-Force） |
4.1～5.8G adjustable |
Screen total area（㎡）/(ft2) |
7.38㎡ |
Screen Angle adjustment range( °) |
0°、3°、6° |
Processing capacity（m3/h）/(GPM) |
30T～100T/h |
Screen Type |
Plate Screen |
Screen size（mm)/(in) |
1000×615 |
Number of screens |
6 above/ 6 below |
Noise（dB） |
＜85 |
Dimensions L*W*H（mm）/(in) |
3460×1774×1559 |
Weight（kg）/(lbs) |
2980 |
Competitive Advantage
● The LS606 Shale Shaker is capable of rapidly processing high-volume slurry, meeting the demands of large-scale infrastructure projects.
● With a screen area of 7.3 square meters, it ensures the rapid separation of solid particles from the slurry, improving processing efficiency and shortening project timelines.
● It can be configured with 1-2 layers of screens of different mesh sizes based on slurry composition and project requirements, enabling precise classification of the slurry.
● Equipped with OLI brand vibration motors and damping systems from Italy, it ensures long-term stable operation of the equipment.
● The efficiently separated slurry can be recycled, reducing slurry discharge, lowering project costs, and protecting the environment.
● Key components are made of high-strength, wear-resistant materials, effectively resisting corrosion and wear from the slurry and extending the equipment's service life.
Applications
BLACK RHINO of the LS606 shale Shaker with its characteristics has high efficiency, precision, environmental friendliness, and durability. It is an ideal choice for infrastructure slurry treatment. It effectively enhances project efficiency, ensures project quality, and reduces project costs, making it a trustworthy partner for your needs. Its application scenarios include:
● Mining Screening
● Slurry Treatment for Shield Tunneling
● Muck Treatment for Shield Tunneling
● Environmental Sludge Treatment
● River Dredging
Application Scenarios of Black Rhino Products
Drilling fluid purification systems
Cutting treatment and recovery
Waste mud and sludge dewatering
Drilling waste minimization and recycling
Mining and mineral processing tailings treatment
Sand and aggregate washing wastewater recycling
Chemical and pharmaceutical slurry dewatering
Oil-water separation in refinery and petrochemical plants
Coolant and machining fluid recycling
Emulsion breaking and hydrocarbon removal
Solids control in CBM exploration and production
Drilling waste management and fluid recycling
Closed-loop drilling cleaning systems
Mud recycling systems for pipeline installation
Slurry separation and bentonite recovery
Urban crossing and river crossing drilling support
Soil conditioning and slurry treatment in TBM shields
Separation and recycling of muck and additives
Tunnel spoil management and water reuse
FAQ
Q: What types of equipment do you mainly produce?
A:Black Rhino focuses on the manufacturing of high-end equipment in the oil and gas and trenchless drilling fields. Its main products include solid control systems, slurry mixing devices, drilling waste treatment equipment, centrifuges, etc., which are widely used in engineering scenarios such as oil drilling, directional crossing, and environmental protection.
Q: Does your equipment support customized requirements?
A: Yes, we can provide flexible customization of equipment size, functions and configurations based on the on-site conditions and specific technical requirements of customers, ensuring a perfect match with existing equipment or vehicles and meeting the diverse needs of different regions and projects.
Q: Does your products comply with international standards and certifications?
A: We has passed the ISO 9001 quality management system certification. Some of its products have international certifications such as CE and API. It strictly follows industry standards to ensure that the equipment meets international market demands in terms of performance, safety and environmental protection.
Q: Can you provide global after-sales service and technical support?
A: Yes, we have service outlets in many regions around the world, offering a 24-month product quality guarantee as well as lifetime technical support and after-sales consultation services to ensure the stable operation of customers' equipment and respond promptly to all kinds of technical demands.
Q: Do you have any experience in overseas project cooperation?
A:Our products have been exported to over 70 countries and regions in Europe, America, the Middle East, Southeast Asia, Oceania and so on. It has established long-term cooperative relationships with many international energy and engineering enterprises and has rich experience in overseas project delivery and service.
