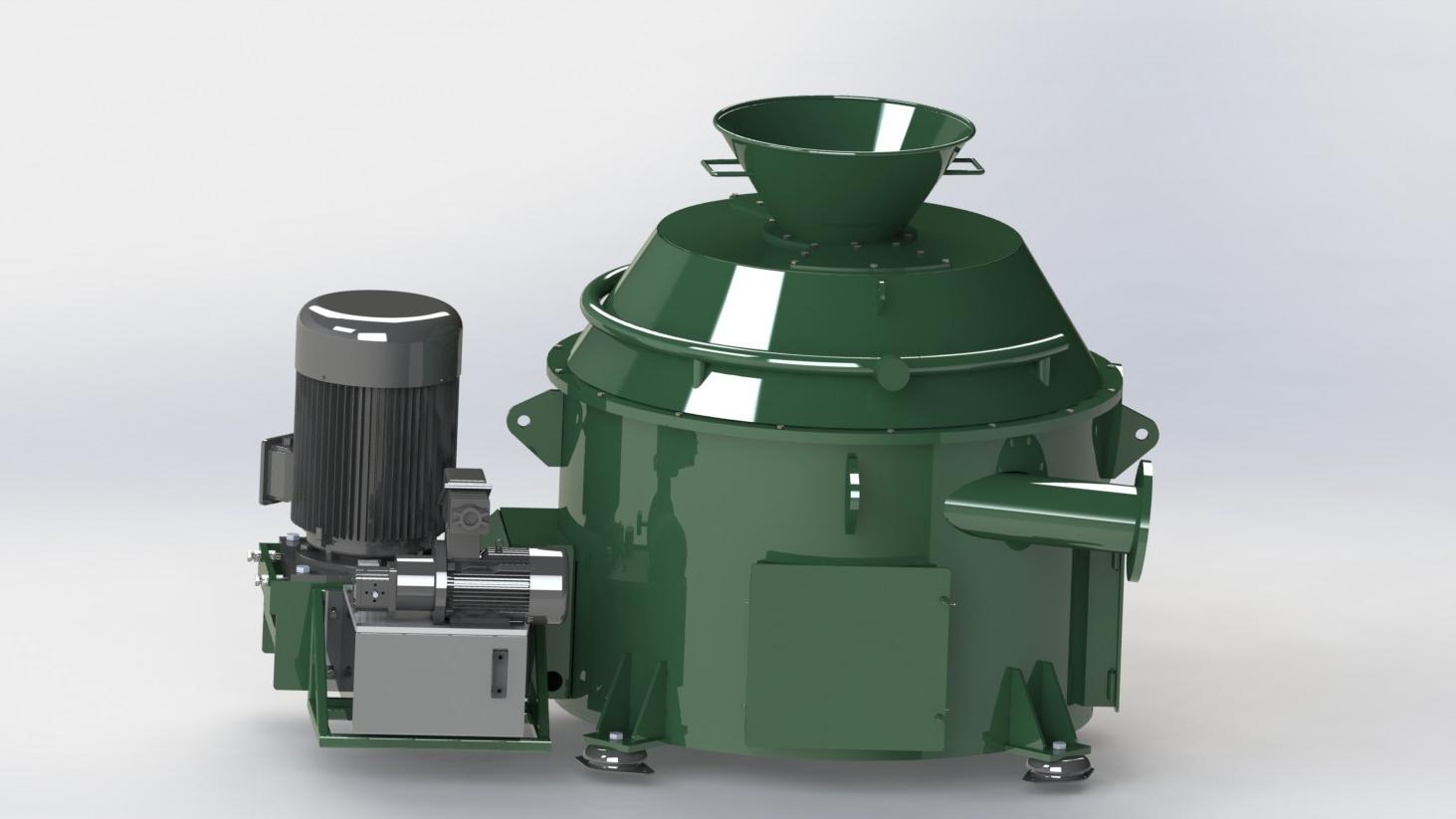

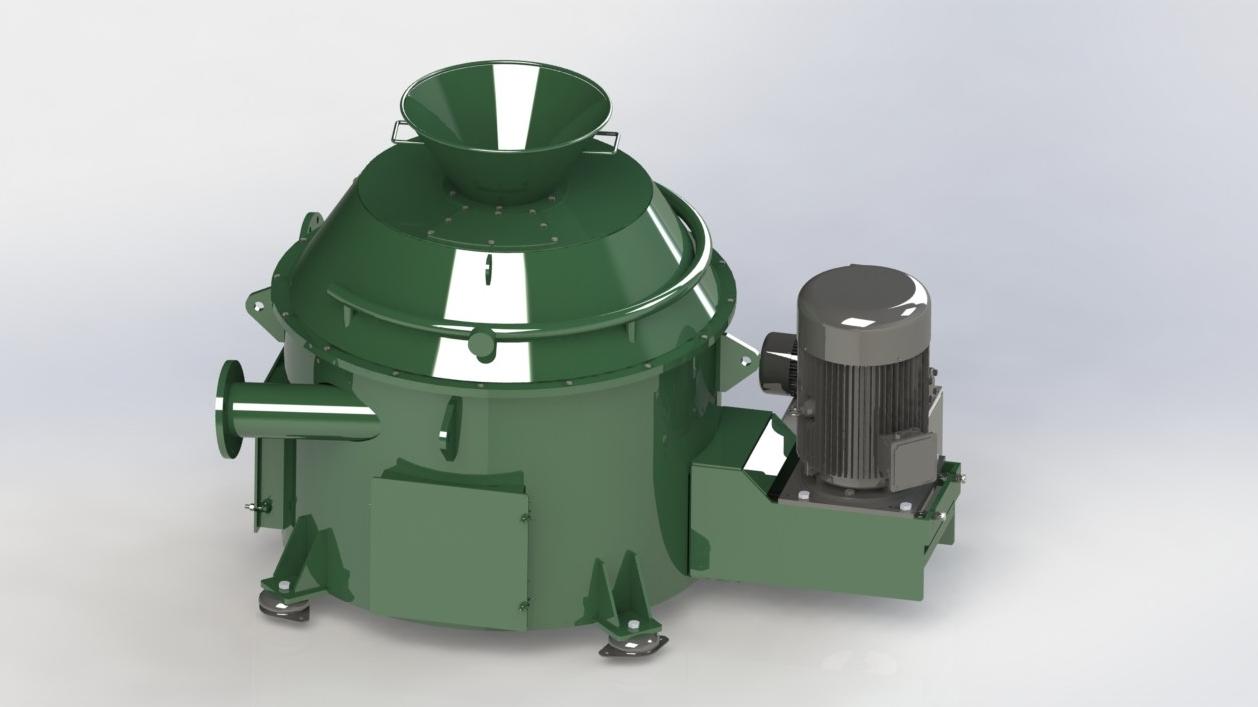

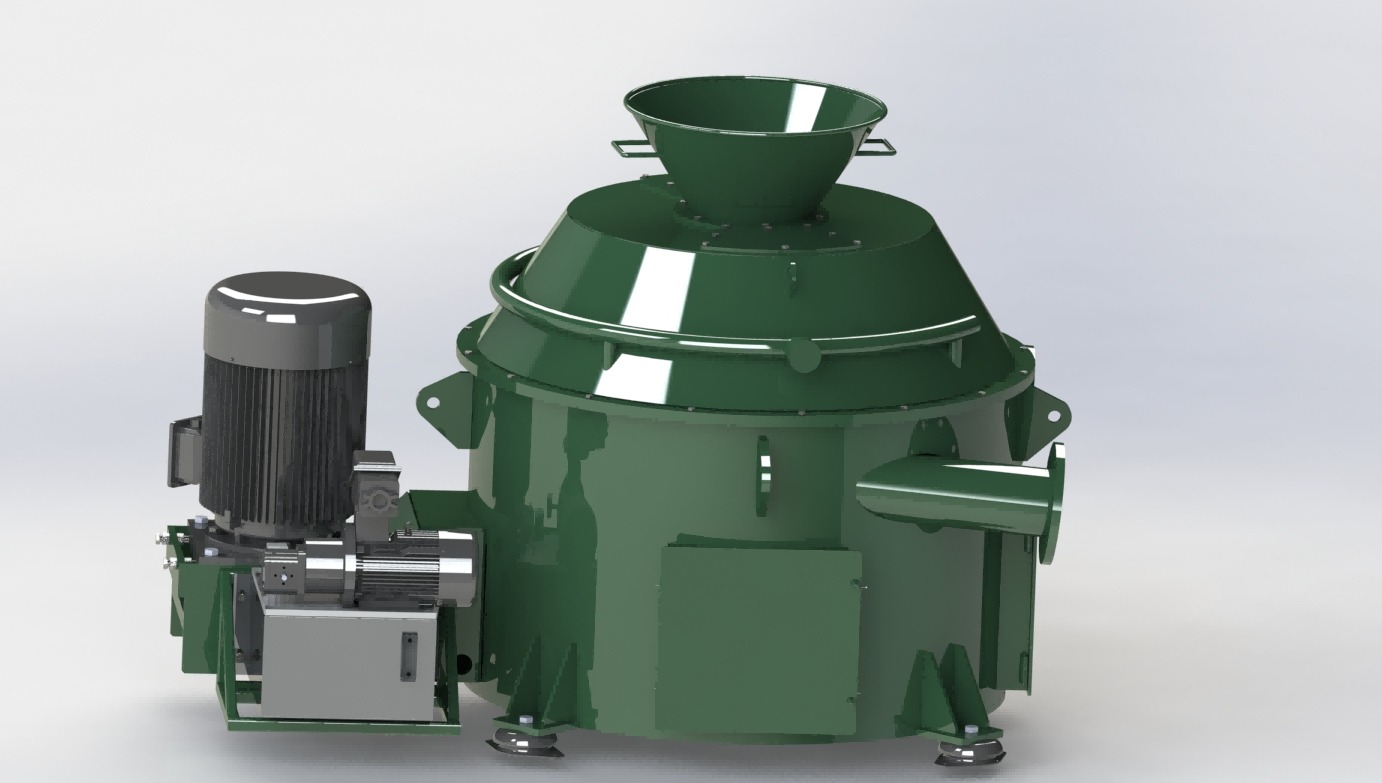

VC series cuttings dryer uses centrifugal separation to dry cuttings and recover liquid phase. It reduces drilling costs and pollution, with oil content <5% (OOC≤5%). Suitable for oil-based and synthetic mud cuttings, processing capacity 15-50t/h, meets international standards, for land and offshore drilling.
Product Description
VC series of Black rhino Cuttings Dryer is through the principle of centrifugal separation, the solid phase is separated, the cuttings dryer can effectively recover the liquid phase components in drilling cuttings, so that the solid phase change is very dry, it can recover the mud in drilling cuttings, mainly for the pre-treatment process of drilling cuttings and sludge centralized treatment, in oil-based mud and synthetic mud cuttings treatment performance is particularly excellent. This reduces drilling costs and environmental pollution. Different models of the dryer processing capacity of about 15-50t/h, the treated cuttings oil content is less than 5%(w/w)(OOC≤5%) in line with international emission standards and environmental requirements, suitable for land and ocean drilling cuttings treatment.
Model Parameters
Model number |
VC700 |
|
Max. Daimeter of screen |
710mm |
|
Main motor power |
22kW |
|
Oil pump motor |
370W （OR 550W） |
|
Treating Capacity |
15～40T/h |
|
Oil on cuttings |
≤5% |
|
Screen opening |
0.38mm/0.51mm |
|
Dimensions(L×W×H) |
2150×1420×1450mm(without support) |
|
Weight |
1780kg |
|
Power |
380V/50Hz；460V/60Hz |
|
Type of Gearbox |
LLL700-74-00A |
|
Competitive Advantage
●It is the main equipment for the reduction of oil-based drilling cuttings, and the solid phase oil content after treatment can reach less than 5%.
● Adopt mature spindle speed frequency conversion control, can adapt to different conditions to achieve better processing effect.
● Common wear parts can be replaced from the top of the device, and the belt can be replaced without moving any device.
● The internal rotary scraper is sprayed with tungsten carbide anti-corrosion and wear-resistant material, which can extend the service life and reduce the maintenance cost.
● Suitable for recovery of drilling cuttings in oil-based mud.
● Achieve the on-site operation requirements of mud without landing, reduce the cost of drilling oil-based mud and waste disposal costs.
Applications
● Oil and gas drilling
● Geological exploration
● CBM development
● Shale gas development
● Geothermal drilling
● Offshore drilling
