Black Rhino VC900 cuttings dryer is a single-stage centrifuge that recovers oil from cuttings. It processes 30-50 tons/hour, with final oil content (OOC) <5%. Suitable for oil-based and composite mud cuttings drying.
Product Description

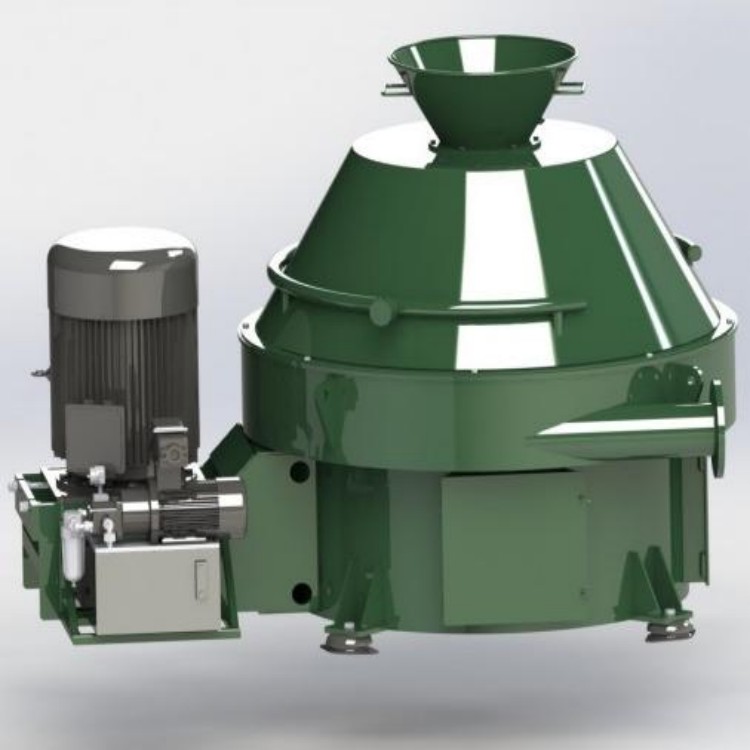

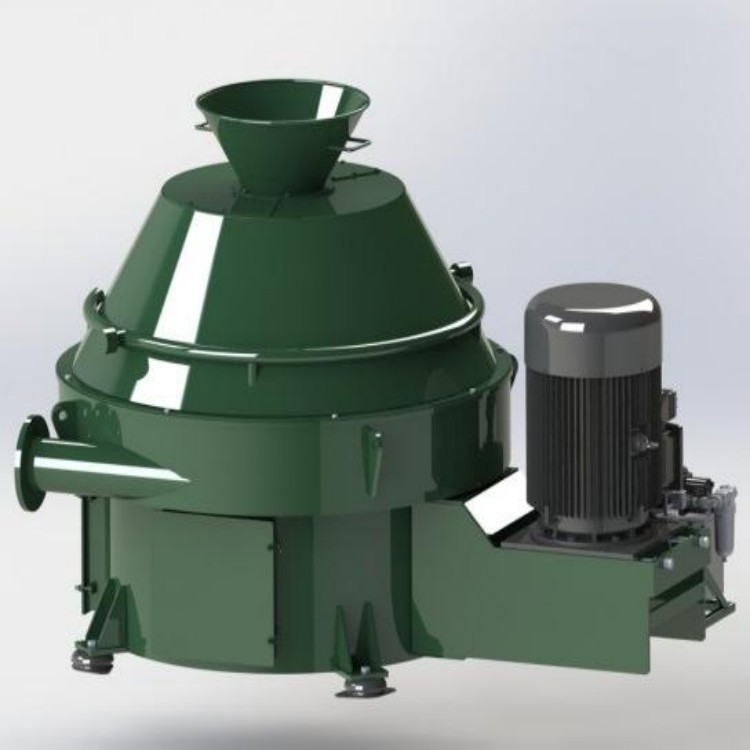

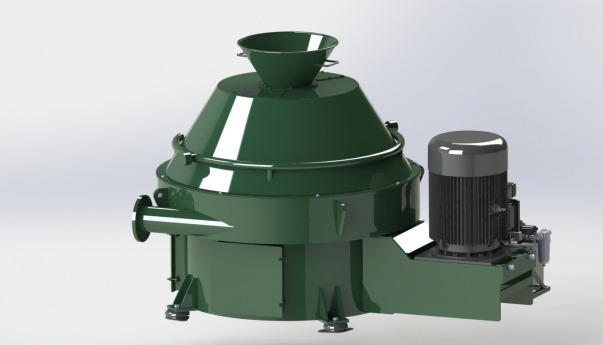

The Black Rhino VC900 cuttings dryer is a single-stage continuous horizontal scraper discharge centrifuge, which can effectively recover the oil components in the cuttings, with a processing capacity of 30-50 tons per hour, and the oil content OOC of the completed cuttings is less than 5%. The VC900 cuttings dryer can be used for many types of drilling mud, mainly for drilling cuttings drying of oil-based and composite mud.
Model Parameters
Model number |
VC900 |
Max. Daimeter of screen |
915mm |
Main motor power |
45kW |
Oil pump motor |
370W |
Treating Capacity |
25～50T/h |
Oil on cuttings |
≤5% |
Screen opening |
0.38mm/0.51mm |
Dimensions(L×W×H) |
2230×1700×1650(without support) |
Weight |
2530kg |
Power |
380V/50Hz；460V/60Hz |
Type of Gearbox |
LLL700-74-00A |
Competitive Advantage
● Mainly used to deal with drilling cuttings discharged from drilling fluid vibrating screen, suitable for oil-based mud and composite mud.
● Oil content OOC of drilling cuttings treated is less than 5%.
● Adopt FAG international brand bearings
● Speed up to 900RPM, can form 420G separation factor, effectively separate the fluid in the drill chip.
● The discharge scraper is made of high chromium cast iron and has a long service life.
● The assembly of high pressure air knife can effectively prevent the blockage of the sieve basket.
● Equipped with scientific tank cooling system, effectively meet the needs of high temperature environment.
● The discharge port can be equipped with a screw conveyor to facilitate the delivery of dry drilling chips and continuous operation of the equipment.
Applications
The BLACK RHINO Shale Shaker is an integral part of the oil drilling operation and is used to separate solid particles (such as cuttings) from the drilling fluid to ensure that the drilling fluid is clean and recycled. Application areas mainly include the following aspects:
● Oil and gas drilling
● Geological exploration
● CBM development
● Shale gas development
● Geothermal drilling
● Mine drilling
● Environmental Engineering
● Offshore drilling
Application Scenarios of Black Rhino Products
Drilling fluid purification systems
Cutting treatment and recovery
Waste mud and sludge dewatering
Drilling waste minimization and recycling
Mining and mineral processing tailings treatment
Sand and aggregate washing wastewater recycling
Chemical and pharmaceutical slurry dewatering
Oil-water separation in refinery and petrochemical plants
Coolant and machining fluid recycling
Emulsion breaking and hydrocarbon removal
Solids control in CBM exploration and production
Drilling waste management and fluid recycling
Closed-loop drilling cleaning systems
Mud recycling systems for pipeline installation
Slurry separation and bentonite recovery
Urban crossing and river crossing drilling support
Soil conditioning and slurry treatment in TBM shields
Separation and recycling of muck and additives
Tunnel spoil management and water reuse
FAQ
Q: What types of equipment do you mainly produce?
A:Black Rhino focuses on the manufacturing of high-end equipment in the oil and gas and trenchless drilling fields. Its main products include solid control systems, slurry mixing devices, drilling waste treatment equipment, centrifuges, etc., which are widely used in engineering scenarios such as oil drilling, directional crossing, and environmental protection.
Q: Does your equipment support customized requirements?
A: Yes, we can provide flexible customization of equipment size, functions and configurations based on the on-site conditions and specific technical requirements of customers, ensuring a perfect match with existing equipment or vehicles and meeting the diverse needs of different regions and projects.
Q: Does your products comply with international standards and certifications?
A: We has passed the ISO 9001 quality management system certification. Some of its products have international certifications such as CE and API. It strictly follows industry standards to ensure that the equipment meets international market demands in terms of performance, safety and environmental protection.
Q: Can you provide global after-sales service and technical support?
A: Yes, we have service outlets in many regions around the world, offering a 24-month product quality guarantee as well as lifetime technical support and after-sales consultation services to ensure the stable operation of customers' equipment and respond promptly to all kinds of technical demands.
Q: Do you have any experience in overseas project cooperation?
A:Our products have been exported to over 70 countries and regions in Europe, America, the Middle East, Southeast Asia, Oceania and so on. It has established long-term cooperative relationships with many international energy and engineering enterprises and has rich experience in overseas project delivery and service.
